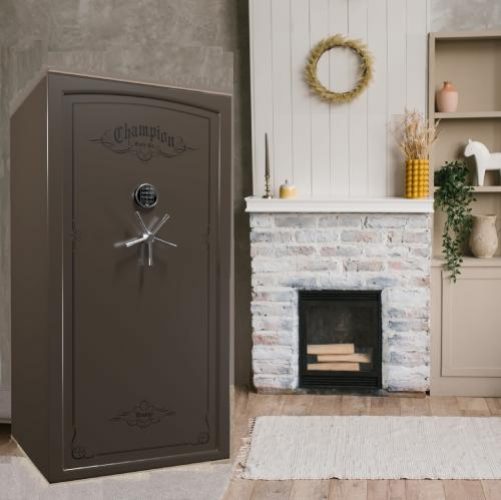

The Champion Safe Co. Trophy Series safes are built using 100% solid American-made steel. The body design of Champion safes is formed from one solid piece of steel. The steel is bent and fit it into the shape needed before welding the top and bottom to the safe with continuous MIG welds. The Trophy safes also feature a Classic Steel Arch Doorway™ adding to their attractive appearance.
- Body is up to 2″ thick composite
- Door is 4-1/2″-thick Double Plate Steel Door™
- Internal ball-bearing hinges have up to 110° door opening
- Handle is 5-spoke with slip clutch system
- Interior is plush velour for handguns and long gun storage
- Deluxe Door Organizer features pistol holders, mesh and fabric door pockets for storage
- LED lighting with motion sensor illuminate’s interior
- External 110-volt inlet allows access to electrical power
- Lock is S&G® Group II mechanical lock (digital electronic lock optional)
- UL® Security Rating
- 1500° F 75-Minute Fire Rating (internal max 350°)
- Lifetime Warranty
Features
| Body | 11-gauge steel wall and up to 3 layers of fire insulation |
|---|---|
|
Door |
10-gauge outer steel, full 14-gauge inner steel & 3 layers of fire insulation |
|
Door Edge |
3/4" multi-layer edge reinforcement against pry attack |
|
Door Frame |
Double-steel door casement™ adds strength and rigidity to body |
|
Locking bolts |
4-way active, 1-1/4” diameter |
|
Bolt-DetentTM |
Stops bolt movement when door is open, protecting mechanism & finish |
|
Lock Protection |
Auto-RelockTM system and Diamond-Embedded Armor PlateTM thwart drilling and force attacks |
|
Fire Protection |
1500° F 75-Minute Fire Rating (internal max 350°) |
Size & Weight
Colors & Trim
Interiors
Size & Weight
| Model | Height | Width | Depth* | Volume | Weight | Locking Bolts |
|---|---|---|---|---|---|---|
| TY-17 | 60” | 24” | 21” | 19 Cubic Feet | 550 Lbs. | 12 |
| TY-25 | 60” | 30” | 24” | 26 Cubic Feet | 705 Lbs. | 14 |
| TY-40 | 66” | 36″ | 26” | 42 Cubic Feet | 905 Lbs. | 14 |
| TY-50 | 72 ¼ ” | 42” | 28” | 51 Cubic Feet | 1,105 Lbs. | 16 |
| TY-60 | 72 ¼ ” | 50” | 28” | 59 Cubic Feet | 1,250 Lbs. | 16 |
| *Add 2.5 inches to depth for handle | ||||||
