The M Series was created by C.E. Safes with Fort Knox to provide a streamlined, basic safe with thick steel in both body and door. Customers can select from 4 different levels of protection by choosing which steel build they want. The M Series is uncompromising on quality and home defense for your valuables. Chart below lists the basic thickness of steel for each M safe level. (Additional metal can be added.)
| Steel | M1 | M2 | M3 | M4 |
|---|---|---|---|---|
| Body | 3/16-inch | 3/16-inch | 1/4-inch | 1/2-inch |

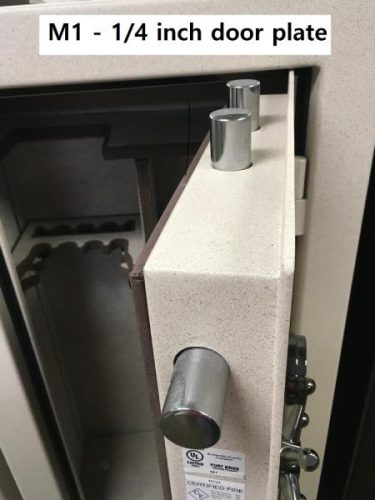

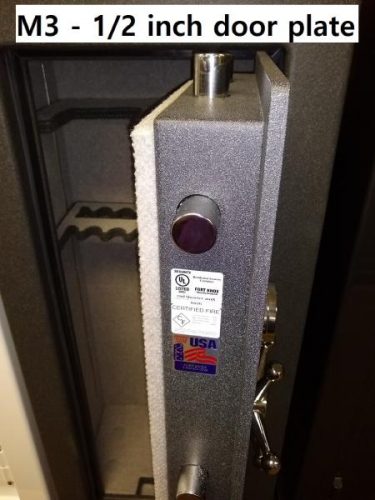

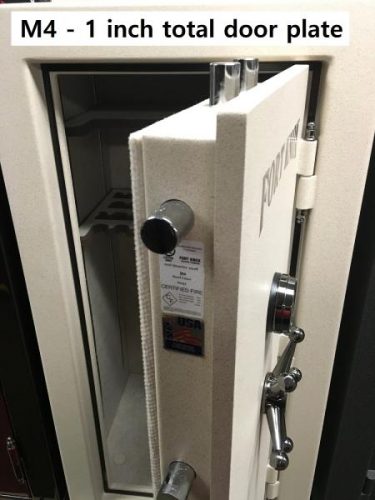

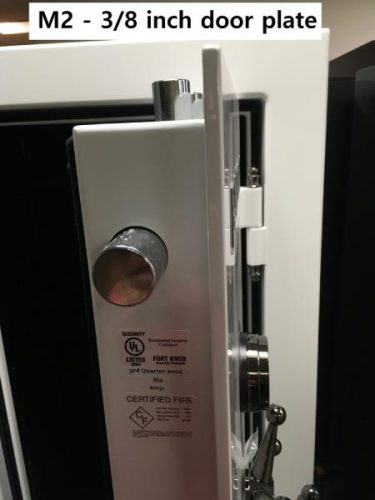

| Door | 1/4” Plate | 3/8” Plate | 1/2” Plate | 1-inch total plate |
Features
| Features | M1 | M2 | M3 | M4 |
|---|---|---|---|---|
|
Fire Protection |
Fire Protection is 50 minutes @ 1450 degrees on all levels. |
|||
|
Locking Bolts |
1 ½” Diameter 4-Way Active All Sides |
|||
|
LED Light Package |
Single (Top) |
Full (all sides) |
Full (all sides) |
Full (all sides) |
|
Internal Power Outlet |
Standard |
Standard |
Standard |
Standard |
|
Hinge Caps |
Option |
Option |
Standard |
Standard |
|
Door Organizer |
Option |
Option |
Option |
Option |
|
Dehumidifier |
Option |
Option |
Option |
Option |
|
Pull Handle |
Option |
Option |
Option |
Option |
Your safe is the last line of defense for your valuables. By adding additional layers of steel you are increasing the tensile strength of the vault, making it stronger and more resistant to attacks.
The following build options can be added to enhance the security of your M Series vault.
INNER STEEL LINER
For added security and maximum protection, you can add extra layers of steel to the inner walls of your vault. Between Level 1 and Level 4 security can be added to create more protection against any burglar trying to breach the inside of the vault.
ARMAKNOX
Add a 3/16” AR500 inner steel liner to give you safe-within-a-safe style ballistic security. The AR500 steel is three times harder than regular steel, with the ability to withstand 3 shots from a .44 magnum pistol.
STAINLESS STEEL PACKAGE
The stainless steel package reinforces the body and door of the vault with a 10-gauge stainless steel barrier for optimum protection against a torch attack. Safe must have inner steel liner option for this upgrade.
| Model | Height | Width | Depth * | M1 Weight | M2 Weight | M3 Weight | M4 Weight |
|---|---|---|---|---|---|---|---|
| 4026 | 40” | 26” | 20” | 560 Lbs. | |||
| 4826 | 48” | 26” | 20” | 690 Lbs. | |||
| 6026 | 60″ | 26” | 20” | 705 Lbs. | 725 Lbs. | 880 Lbs. | 1,340 Lbs. |
| 6031 | 60” | 31” | 27” | 885 Lbs. | 925 Lbs. | 1,129 Lbs. | 1,814 Lbs. |
| 6631 | 66″ | 31” | 27” | 1,110 Lbs. | 1,334 Lbs. | 2,005 Lbs. | |
| 6637 | 66” | 37” | 27″ | 1,083 Lbs. | 1,133 Lbs. | 1,382 Lbs. | 2,220 Lbs. |
| 7241 | 72” | 41” | 27” | 1,238 Lbs. | 1,298 Lbs. | 1,599 Lbs. | 2,496 Lbs. |
| 7251 | 72” | 51” | 27” | 1,520 Lbs. | 1,530 Lbs. | 1,850 Lbs. | |
| 7261 | 72” | 61” | 27” | ||||
| *Add 1 ½-inch to depth overall for handle & hinge | |||||||
Carpet Fabric
Crushed Velvet/Velour
Feature Options and Accessories
Left Hinge
Open right to left
Right Hinge
Open left to right
- 1 File and 6 Small Drawers
- 10 Small Drawers
- 2 File and 2 Small Drawers
LARGE DRAWER SYSTEM
Used in 6031 and larger
Configure Options:
- 1 File and 8 Small Drawers
- 12 Small Drawers
- 3 File Drawers
(Black jewelry tray inserts are not included. Must be selected separately)
Tray Fabric is Black Velour
Dehumidifier rods cause air to circulate within the safe, preventing moisture.
They are available in different sizes, depending on the safe’s capacity.
