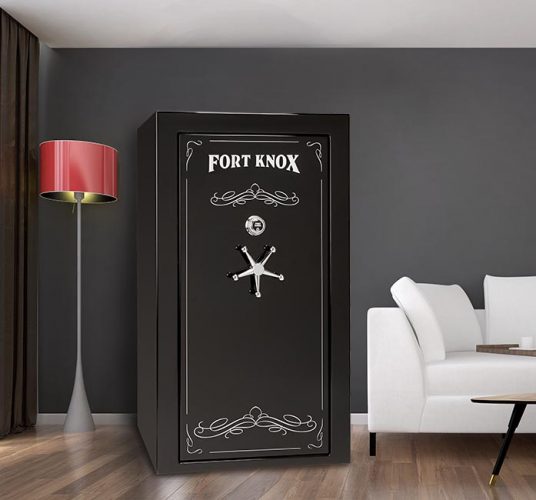

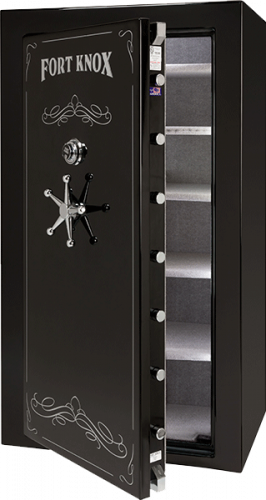

The Titan Vault begins with a 3/8” thick dual body constructed of a 3/16” carbon steel body and 3/16” (7 gauge) ArmaKnox AR500 inner steel liner. The AR500 steel liner gives you a safe-within-a-safe style security and provides superior protection. The ArmaKnox AR500 is three times harder than regular steel. In addition to dual steel bodies, the Titan has a massive ¾” door edge consisting of 3/8” inner steel, a layer of 3/16” AR500 Steel and 10-gauge outer steel wrapped around 2 layers of fire wall. The door is held in place by 18 count 1 ½” diameter locking bolts and 4 star corner bolts. The wide corner bolts cover maximum surface area, securing the corners of the door to prevent attacks from prying.
Features
| Fire Protection | 1680 Degrees F in 90 Mins |
|---|---|
|
Overall Body Steel Thickness |
3/8-Inch |
|
Door Edge Steel Thickness |
3/4-inch |
|
Locking Bolts |
18 – 1 ½” Diameter |
|
AR500 Steel Inner Liner |
3/16-inch |
| Corner Bolts | Standard |
|---|---|
|
Door Organizer |
Standard |
|
Lights |
Standard |
|
Dehumidifier |
Standard |
|
Hinge Caps |
Standard |
Your safe is the last line of defense for your valuables. By adding additional layers of steel you are increasing the tensile strength of the vault, making it stronger and more resistant to attacks.
The following build options can be added to enhance the security of your Titan vault.
INNER STEEL LINER
For added security and maximum protection, you can add extra layers of steel to the inner walls of your vault. Between Level 1 and Level 4 security can be added to create more protection against any burglar trying to breach the inside of the vault.
VAULT BODY UPGRADES
The steel thickness of the outer safe body can be increased from 3/16” to ¼ inch.
STAINLESS STEEL PACKAGE
The stainless steel package reinforces the body and door of the vault with a 10-gauge stainless steel barrier for optimum protection against a torch attack. Safe must have inner steel liner option for this upgrade.
INFERNO SHIELD LEVEL 120
The 2 Hour Reinforced Fire upgrade adds more fireboard insulation to protect your most prized possessions, increasing the rating to 1680 degrees in 120 minutes.
| Model | Height | Width | Overall Depth | Volume | Weight | Locking Bolts |
|---|---|---|---|---|---|---|
| 6031 | 60” | 31” | 27” / 30” | 28 Cubic Feet | 1,455 Lbs. | 18 |
| 6637 | 66” | 37” | 27” / 30” | 36 Cubic Feet | 1,810 Lbs. | 20 |
| 7241 | 72” | 41” | 27” / 30” | 45 Cubic Feet | 2,160 Lbs. | 20 |
| 7251 | 72” | 51” | 27” / 30” | 57 Cubic Feet | 2,530 Lbs. | 20 |
| 7261 | 72” | 61” | 27” / 30” | 69 Cubic Feet | 2,705 Lbs. | 20 |
Carpet Fabric
Crushed Velvet/Velour
Feature Options and Accessories
Light fixtures are installed inside at top and sides of safe.
Electric powered and motion activated when door is opened.
Pick any 2 colors for FADE EFFECT – blending body color into door color
- 1 File and 6 Small Drawers
- 10 Small Drawers
- 2 File and 2 Small Drawers
LARGE DRAWER SYSTEM
Used in 6031 and larger
Configure Options:
- 1 File and 8 Small Drawers
- 12 Small Drawers
- 3 File Drawers
(Black jewelry tray inserts are not included. Must be selected separately)
Tray Fabric is Black Velour
Dehumidifier rods cause air to circulate within the safe, preventing moisture.
They are available in different sizes, depending on the safe’s capacity.
