ISM Magen Goldman is a global safe manufacturer established in 1914. ISM is responsible for numerous developments and innovations in the fields of safes engineering and security. ISM is among the world leaders in the safe & vault industry. The physical construction, use of composite materials and a unique locking mechanism all combine to create a maximum security barrier against all forms of modern burglary attacks.
Fire Protection: 2 Hour, 350 Degrees Factory Fire Rating
Bolts & Locking Mechanisms: 3-way active boltwork. Double-action locking mechanism. Glass plate relocking protection on locks.
Locks: Two UL approved locks. Mechanical or digital combination lock and a high security key lock.
Interior: Adjustable removable metal shelves. Custom Interiors available.
Brand models featured:
- Bullion TL-30 Safe
- Ultra Vault TL-30×6 Safe
- Super Treasury TRTL-30×6
ISM TL Rate Safe Models
| Features | Bullion | Ultra Vault | Super Treasury |
|---|---|---|---|
|
Industry Rating |
TL-30 |
TL-30x6 |
TRTL-30x6 |
|
Certification |
U.L. Certified |
U.L. Certified |
U.L. Certified |
|
Fire Protection |
Factory 2 Hour (120 minutes) Class 350 (internal temperature degrees) |
||
|
Locking Bolts |
Solid Steel – 3-way active multi-directional boltwork 1.6” diameter |
||
|
Door Thickness |
3.55 inches |
3.55 inches |
4.25 inches |
|
Wall Thickness |
3.55 inches |
3.55 inches |
4.25 inches |
|
Material |
Multi-layered structure of cast concrete, outer and inner steel plates |
||
|
Door reinforced with patented anti-penetration alloy grid |
Door & all sides reinforced with patented anti-penetration alloy grid |
Patented alloy grid plus Alchronite, ISM’s torch & drill protection on all sides |
|
|
Lock |
Double locking system with UL approved lock (mechanical or digital) and high security keylock protected by random glass plate relockers |
||
|
Door Pull Handle Bar |
Standard on sizes 3219 and up |
||

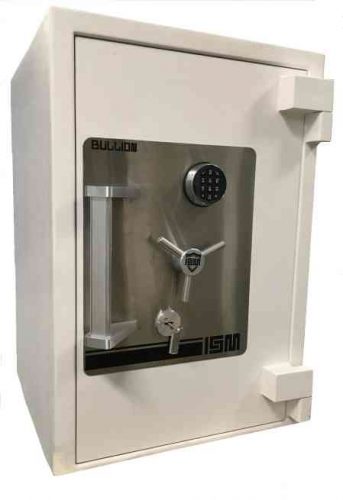

Bullion Vaults have a multi-layered structure that combines outer and inner steel plates enclosing a monolithic casting of specialized concrete mixed with ISM’s unique anti-penetration composite material. The door is reinforced with ISM’s patented anti-penetration alloy grid. U.L. approved TL-30 rating for high protection against concentrated attacks with mechanical and electrical tools.
| Models | Outer Dimensions (inches) | Inner Dimensions (inches) | Volume CuFt | Weight (Lbs) | Shelves | ||||
|---|---|---|---|---|---|---|---|---|---|
| H | W | D | H | W | D | ||||
| BU201414 | 26.5 | 20.5 | 23 | 20 | 14 | 14 | 2.3 | 875 | 1 |
| BU251714 | 31.5 | 23.5 | 23 | 25 | 17 | 14 | 3.4 | 1,172 | 1 |
| BU251816 | 31.5 | 24.5 | 25 | 25 | 18 | 16 | 4.2 | 1,230 | 1 |
| BU321916 | 38.5 | 25.5 | 25 | 32 | 19 | 16 | 5.6 | 1,670 | 1 |
| BU352120 | 41.5 | 27.5 | 31 | 35 | 21 | 20 | 8.5 | 1,820 | 1 |
| BU352420 | 41.5 | 30.5 | 31 | 35 | 24 | 20 | 9.7 | 1,940 | 1 |
| BU452120 | 51.5 | 27.5 | 31 | 45 | 21 | 20 | 10.9 | 2,160 | 2 |
| BU452420 | 51.5 | 30.5 | 31 | 45 | 24 | 20 | 12.5 | 2,300 | 2 |
| BU531815 | 59.5 | 24.5 | 26 | 53 | 18 | 15 | 8.3 | 1,893 | 3 |
| BU552120 | 61.5 | 27.5 | 31 | 55 | 21 | 20 | 13.4 | 2,500 | 3 |
| BU552420 | 61.5 | 30.5 | 31 | 55 | 24 | 20 | 15.3 | 2,660 | 3 |
| BU601815 | 66.5 | 24.5 | 26 | 60 | 18 | 15 | 9.4 | 2,160 | 3 |
| BU602120 | 66.5 | 27.5 | 31 | 60 | 21 | 20 | 14.6 | 2,670 | 3 |
| BU602124 | 66.5 | 27.5 | 35 | 60 | 21 | 24 | 17.5 | 2,910 | 3 |
| BU652818 | 71.5 | 34.5 | 29 | 65 | 28 | 18 | 19.0 | 3,270 | 4 |
| BU723626 | 78.5 | 42.5 | 37 | 72 | 36 | 26 | 39.0 | 4,710 | 4 |
| Add 2” to outside depth for 3-Spoke Handle | Add 3.55” to outside depth for Pull Handle | ||||||||
Ultra Vaults have a multi-layered structure that combines outer and inner steel plates, Reinforced steel bars and monolithic casting of specialized concrete mixed with ISM’s unique anti-penetration composite material. Both body and door are reinforced with ISM’s patented anti-penetration alloy grid. U.L. approved TL-30×6 rating provides six-sided protection against concentrated attacks with mechanical and electrical tools.
| Models | Outer Dimensions (inches) | Inner Dimensions (inches) | Volume CuFt | Weight (Lbs) | Shelves | ||||
|---|---|---|---|---|---|---|---|---|---|
| H | W | D | H | W | D | ||||
| UV201414 | 26.5 | 20.5 | 23 | 20 | 14 | 14 | 2.3 | 900 | 1 |
| UV251714 | 31.5 | 23.5 | 23 | 25 | 17 | 14 | 3.4 | 1,200 | 1 |
| UV251916 | 31.5 | 25.5 | 25 | 25 | 19 | 16 | 4.4 | 1,370 | 1 |
| UV321916 | 38.5 | 25.5 | 25 | 32 | 19 | 16 | 5.6 | 1,750 | 1 |
| UV342018 | 40.5 | 26.5 | 29 | 34 | 20 | 18 | 7.1 | 1,800 | 1 |
| UV462018 | 52.5 | 26.5 | 29 | 46 | 20 | 18 | 9.6 | 2,220 | 2 |
| UV531815 | 59.5 | 24.5 | 26 | 53 | 18 | 15 | 8.3 | 2,126 | 2 |
| UV592018 | 65.5 | 26.5 | 29 | 59 | 20 | 18 | 12.3 | 2,670 | 3 |
| UV592023 | 65.5 | 26.5 | 34 | 59 | 20 | 23 | 15.7 | 3,040 | 3 |
| UV601815 | 66.5 | 24.5 | 26 | 60 | 18 | 15 | 9.4 | 2,369 | 3 |
| UV633218 | 69.5 | 38.5 | 29 | 63 | 32 | 18 | 21 | 3,550 | 3 |
| UV683626 | 74.5 | 42.5 | 37 | 68 | 36 | 26 | 36.8 | 4,690 | 4 |
| Add 2” to outside depth for 3-Spoke Handle | Add 3.55” to outside depth for Pull Handle | ||||||||
Super Treasury Vaults have a multi-layered structure that combines outer and inner steel plates, reinforced steel bars and a monolithic casting of Alchronite, ISM’s patented torch and drill resistant composite material, embedding a layer of ISM’s patented anti-penetration alloy grid. U.L. approved TRTL-30×6 provides six-sided protection against concentrated attacks with mechanical and electrical tools and oxy-acetylene torches.
| Models | Outer Dimensions (inches) | Inner Dimensions (inches) | Volume CuFt | Weight (Lbs) | Shelves | ||||
|---|---|---|---|---|---|---|---|---|---|
| H | W | D | H | W | D | ||||
| ST191616 | 26 | 23 | 28 | 19 | 16 | 16 | 2.8 | 1,260 | 1 |
| ST271916 | 34 | 26 | 28 | 27 | 19 | 16 | 4.8 | 1,670 | 1 |
| ST272617 | 34 | 33 | 29 | 27 | 26 | 17 | 6.9 | 2,010 | 1 |
| ST332020 | 40 | 27 | 32 | 33 | 20 | 20 | 7.6 | 2,140 | 1 |
| ST332617 | 40 | 33 | 29 | 33 | 26 | 17 | 8.4 | 2,270 | 1 |
| ST442023 | 51 | 24 | 35 | 44 | 20 | 23 | 11.7 | 2,770 | 2 |
| ST442617 | 51 | 33 | 29 | 44 | 26 | 17 | 11.3 | 2,750 | 2 |
| ST552023 | 62 | 27 | 35 | 55 | 20 | 23 | 14.6 | 3,250 | 2 |
| ST552617 | 62 | 33 | 29 | 55 | 26 | 17 | 14.1 | 3,220 | 2 |
| ST642023 | 71 | 27 | 35 | 64 | 20 | 23 | 17 | 3,640 | 3 |
| ST642617 | 71 | 33 | 29 | 64 | 26 | 17 | 16.4 | 3,610 | 3 |
| ST683119 | 75 | 38 | 31 | 68 | 31 | 19 | 23.2 | 4,330 | 4 |
| ST683626 | 75 | 43 | 38 | 68 | 36 | 26 | 36.8 | 5,330 | 4 |
| Add 2” to outside depth for 3-Spoke Handle | Add 3.55” to outside depth for Pull Handle | ||||||||
Customize Your Jewelry Safe
with Cabinet Drawers and Storage Trays
Multiple Storage Designs, Colors, Woods, and Finishes
UL Rated safes are certified according to the strict standards of Underwriters Laboratories. Underwriters Laboratories is an international product certification company and is the industry standard for safe certifications. Safes that have been certified by Underwriters Laboratories represent the highest quality product and level of protection available for purchase.
UL Rated Safes are rated according to resistance to entry attempts, protection against fire, and other standardized tests.
Burglary ratings are according to how long the safe can withstand a burglary attack and what type of tools could be used in this attack. These are determined by a number of factors including the materials the safe is constructed out of, the type of lock used, and other security mechanisms.
Net Working Time: Most UL Rated safes have a number that refers to the time it should take to open up the safe. For example, a TL-30 safe should not be able to be opened in under 30 minutes with a given toolset. Standards state that the minimum time any anti-theft device must resist attack is 5 minutes.
Tool Resistance: Along with the net working time, tool resistance is shown as a prefix in the rating, and describes the toolset that the safe should be able to withstand during that period. The ratings according to the toolset used are:
- TL – common manual and electric tools such as pry bars, chisels, picks, drills, cutting wheels, grinders, impact hammers, and saws.
- TRTL – same criteria as TL, with the addition of gas powered torches (plasma cutters, gas torches, butane torches, etc).
- TXTL – same criteria as TRTL, with the addition of high powered explosives (up to 4 ounces of nitroglycerin) or 8 ounces of other explosives.
Fire resistance ratings are determined by the time a safe should be able to maintain a specific maximum internal temperature. Times range from a 1/2 hour to 4 hours and internal temperatures vary depending on the type of items the safe should hold. Internal temperatures can be either 125°F, 150°F, or 350°F (Class 125, Class 150, Class 350) with the most common rating temperature being 350°F. This is low enough to safely store items such as paper material, jewelry, and most modern electronic media.
